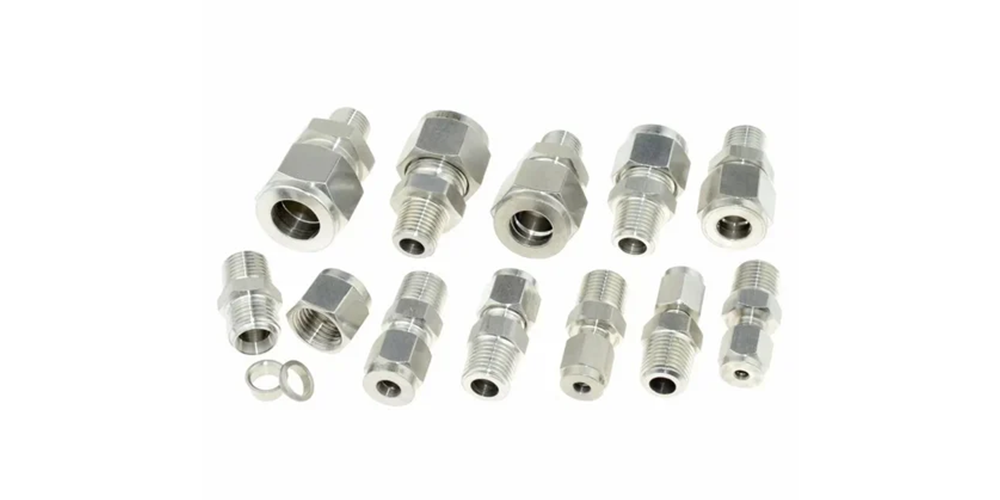

Single Ferrule Tube Fittings

Our Single Ferrule Tube Fittings are precision-engineered components designed to provide secure and leak-proof connections in various fluid systems. Manufactured in compliance with international standards, these fittings are widely used in hydraulic, pneumatic, and lubrication systems. The bite-type single ferrule design ensures a tight seal and high-performance operation even under extreme pressure and temperature conditions. Available in Stainless Steel, Brass, and Steel, they offer excellent durability and corrosion resistance.

Specifications

• • For Tube Size: 6mm OD to 42mm OD / 1/8″NB TO 2″NB
• • Maximum Operating Pressure:
  • Series LL: 100 barg @ 100℉ (38℃)
  • Series L: 315 barg @ 100℉ (38℃)
  • Series S: 630 barg @ 100℉ (38℃)
• • Operating Temperature Range: up to 800℉ (427℃)

Features

• • Designed as per international standards DIN 2353 / ISO 8434-1 for global compatibility and performance
• • Bite-type single ferrule system delivers high-pressure sealing by gripping the tube securely without damage
• • Two-cutting-edge ferrule ensures superior resistance against vibration and stress fatigue
• • Soft-seal cutting ring enhances leak-tight sealing, even with thin-walled tubes
• • Available in corrosion-resistant materials such as Stainless Steel, Brass, and Carbon Steel for various environments
• • Compact design supports space-saving assembly, ideal for tight or complex installations
• • Easy installation and reusability without compromising sealing performance
• • Excellent vibration resistance and high mechanical strength under dynamic loads

Applications

• • Hydraulic Systems: Used in high-pressure hydraulic circuits for machinery, presses, and construction equipment
• • Pneumatic Systems: Suitable for controlling compressed air flow in automation, packaging, and robotics
• • Lubrication Systems: Ensures oil and grease flow in industrial machinery, reducing friction and wear
• • Instrumentation Lines: Ideal for precise pressure and flow control in process instrumentation systems
• • Power Plants: Used in turbine and boiler control systems for fluid and steam transmission
• • Oil & Gas Industries: Employed in refineries, offshore rigs, and chemical plants for leak-proof fluid control
• • Marine & Shipbuilding: Integrated into piping systems onboard vessels for reliability in harsh marine conditions
• • Food and Beverage: Applied in sanitary piping systems where cleanliness and leak prevention are critical
• • Pharmaceutical & Biotech: Used in sterile process piping where tight sealing and easy disassembly are required
