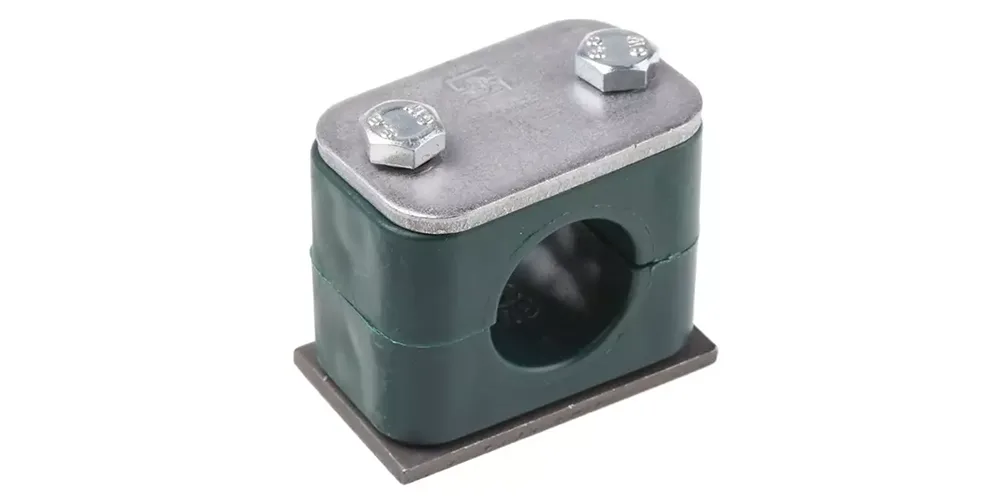

Standard Series Clamp (DIN 3015 Part 1)

Standard Series Clamps, as per DIN 3015 Part 1, are engineered for the reliable, efficient, and cost-effective mounting of pipes, tubes, and hoses across a wide range of industrial applications. These clamps are widely recognized for their robust design, simple installation, and excellent performance in environments where low to medium mechanical stress is expected. Constructed with high-grade materials such as polypropylene (PP), polyamide (PA), aluminium, or rubber insert bodies, they offer significant resistance to wear, corrosion, vibration, and environmental factors. The clamp body is typically supported by a weld plate or mounting rail, and is secured in place with a cover plate and bolts, ensuring a firm grip and easy maintenance or replacement during servicing

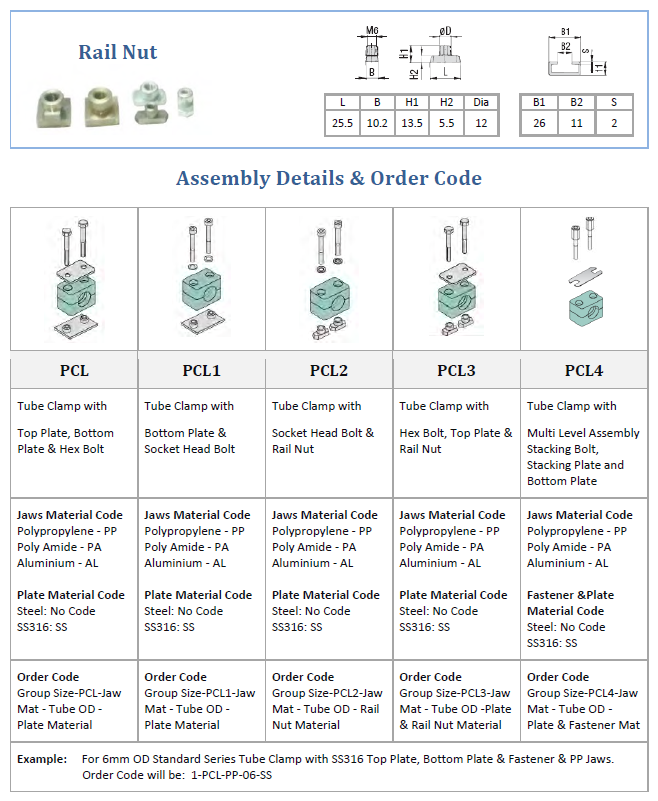

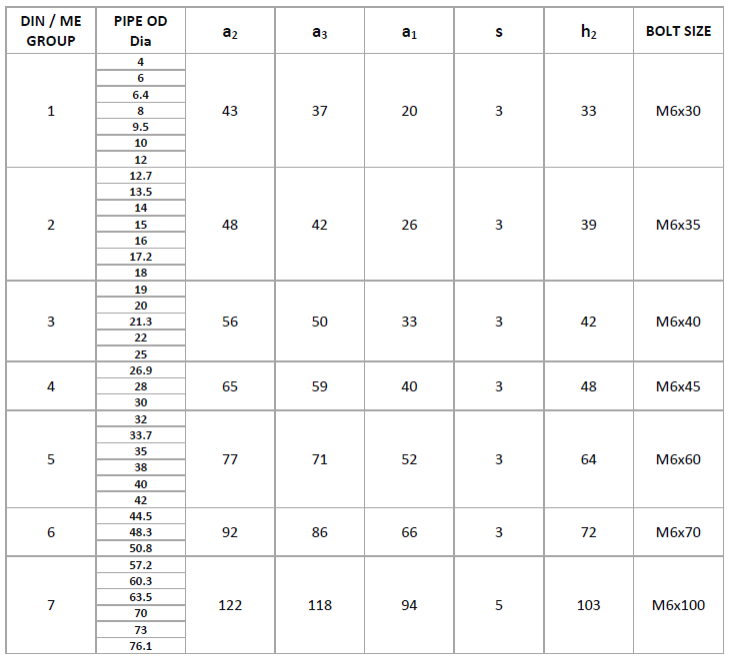

Standard Clamp Dimensions
